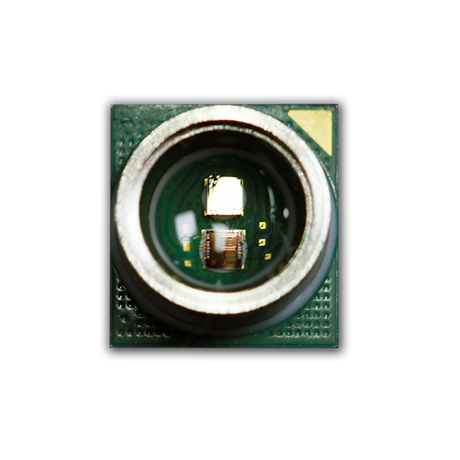

防水型高精度气压传感器
HP206W
HP206W采用MEMS压力传感器带I2C接口，提供准确的温度，压力或高度数据。
防水型高精度Descriptions：
The HP206W employs a MEMS pressure sensor with an I²C interface to provide accurate temperature, pressure or altitude data. The sensor pressure and temperature outputs are digitized by a high resolution 24-bit ADC. The altitude value is calculated by a specific patented algorithm according to the pressure and temperature data. Data compensation is integrated internally to save the effort of the external host MCU system. Easy command-based data acquisition interface is available. Typical active supply current is 5.3μA per measurement-second while the ADC output is filtered and decimated by 256. Pressure output can be resolved with output in fractions of a Pascal, and altitude can be resolved in 0.2 meter. Package is surface mount with a stainless-steel cap and is RoHS compliant.
Applications：
■ High Precision Mobile Barometer or Altimeter
■ Industrial Pressure and Temperature Monitoring System
■ Waterproof Consumer Electronics
■ Outdoor Sports Equipment
■ Weather Station
■ Ventilation System
